Path

Hand-free drawing tool.

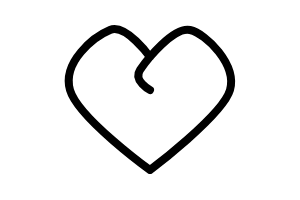

Examples

import { Path } from "pencil.js";

const from = startingPosition;
const path = new Path(from, [
    Path.lineTo(pos1),
    Path.moveTo(pos2),
    Path.quadTo(pos3, controlPoint),
    Path.bezierTo(pos4, controlPoint1, controlPoint2),
], isClosed, options);

// Or with a SVG path string (relative to the starting position)
const svgPath = new Path(from, "c 40 10, 65 10, 95 80 s 150 150, 180 80");

Instructions

Instruction	Description
Path.lineTo(position)	Straight line
Path.moveTo(position)	Move without drawing
Path.quadTo(position, control)	Quadratic curve
Path.bezierTo(position, control1, control2)	Bezier curve
Path.quarterTo(position, clockwise = true)	Quarter circle
Path.halfTo(position, clockwise = true)	Half circle
Path.arcTo(position, angle, magicRatio, clockwise = true)	Approximated arc
Path.splineThrough(points, tension)	Smooth curve through points
Path.waveTo(position, nbWaves = 1)	Series of half circles
Path.sinTo(position, nbSins = 1, sinsHeight = 10)	Sinusoid

Paths built with these instructions can be serialized with JSON.stringify and revived with from.

PathOptions

Inherit from ComponentOptions if the path is closed, or from LineOptions otherwise.

Path have no specific options.
